Name: Ruckus wireless Ruckus Unleashed R500 Refurbused
Brand: Ruckus wireless
Price: 199.00 EUR
Availability: InStock

Productomschrijving

De Ruckus R500 is een high-performance 802.11ac indoor access point en werkt gelijktijdig op de 2,4 en 5 GHz frequentie. Met een gepatenteerde adaptieve antenne technologie die ervoor zorgt dat u een stabiele en betrouwbare draadloze verbinding kan realiseren.

Dit acces point is volledig nagekeken en en beschikt over de nieuwste software.
Wordt geleverd met optionele POE voeding of maak gebruik van uw bestaande POE switch.

Eigenschappen Ruckus ZoneFlex R500 Unleashed

Indoor access point met ingebouwde controller
Dual concurrent 2,4 GHz & 5 GHz (802.11ac)
Snelheid: 600 Mbps (2,4 GHz) + 1300 Mbps (5 GHz)
802.3af Power over Ethernet (PoE)
Stabiel en betrouwbaar WiFi-netwerk
Maximaal 512 gelijktijdige gebruikers per netwerk
Beamflex technologie voor groot bereik
Ruckus Unleashed app voor iOS en Android
Seamless roaming (unifi ubiquiti bied dit niet)
2x2:2 stream

Download specificaties

ZoneFlex R500 Unleashed Specifications
Physical Characteristics
Power	DC Input: 12 VDC 1.0A Power over Ethernet 802.3 af
Physical Size	15.8 cm (L) x 15.8 cm (W) x 4 cm (H) 6.2 in (L) x 6.2 in (W) x 1.57 in (H)
Weight	350 g (0.77 lb.)
Data Ports	2 auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45, POE port (on one port)
Mounting Options	Electrical wallbox; Standard US and EU single gang wall jack Optional bracket for offset & wall mount
Lock Options	Hidden latching mechanism Kensington Lock Hole T-bar Torx Bracket (902-0108-0000) Torx screw & padlock (sold separately
Environmental Conditions	Operating Temperature: 0°C - 50°C Operating Humidity: 10% - 95% non-condensing
Power Draw	Idle: 4W Typical: 6.13W Peak: 11.1W
Performance and Capacity
Concurrent Stations	Up to 512 clients per AP
Simultaneous VoIP Clients	Up to 30
RF

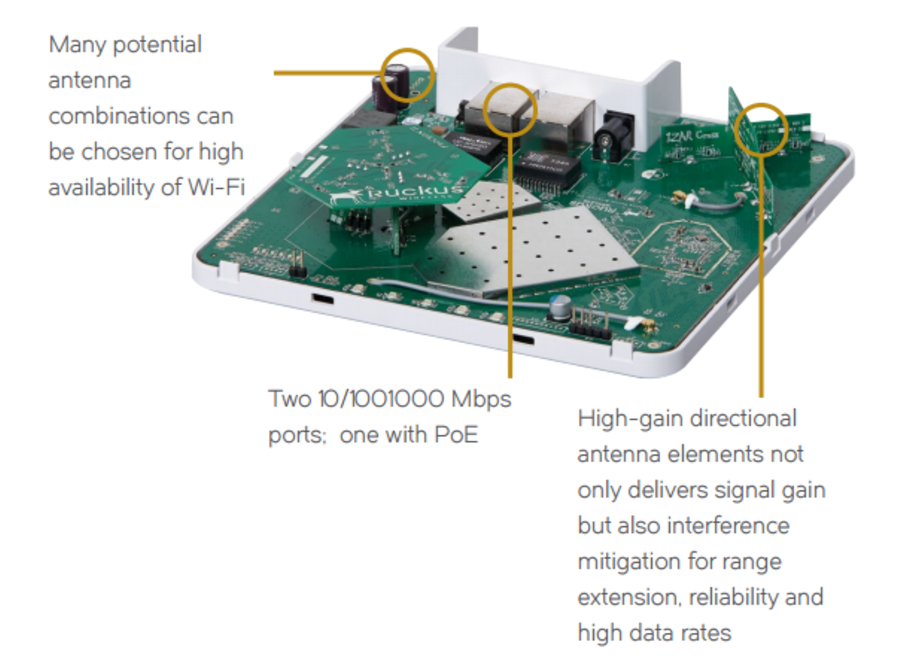

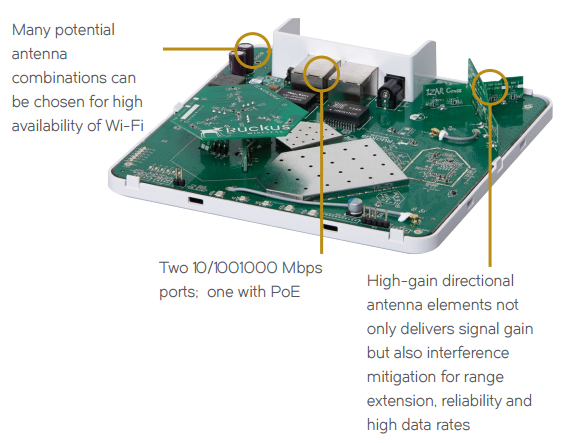

Antenna	Adaptive antenna that provides up to 64 unique antenna patterns per radio Full omnidirectional polarization diversity
Physical Antenna Gain	Up to 3 dBi
BeamFlex¹ SINR TX Gain	Up to 4 dB
BeamFlex¹ SINR RX Gain	3-5 dB (PD-MRC)
Interference Mitigation	Up to 10 dB
Minimum RX Sensitivity	Up to -100 dBm
Management
Deployment Options	Ruckus Unleashed, controller-less
Configuration	Basic SNMP support
Wi-Fi
Standards	IEEE 802.11a/b/g/n/ac 2.4GHz and 5GHz
Supported Data Rates	802.11n/ac: 6.5Mbps – 260Mbps (20MHz) 13.5Mbps – 600Mbps (40MHz) 29.3Mbps – 1300Mbps (80MHz) 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Radio Chains	2x2
Spatial Streams	2
RF Power Output (Aggregate)	26 dBm for 2.4GHz^† 25 dBm for 5GHz^†
Channelization	20MHz, 40MHz, 80MHz
Frequency Band	IEEE 802.11 b/g/n: 2.4 – 2.484 GHz IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35 GHz; 5.47 – 5.725 GHz; 5.725 – 5.85 GHz
Operating Channels	US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan X41: 1-13 5 GHz channels: Country dependent
Power Save	Supported
Wireless Security	Authentication via 802.1X with the local authentication database, support for RADIUS, LDAP, DPSK and ActiveDirectory
Certifications	U.S., Europe, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, New Zealand, Peru, Philippines, Saudi Arabia, Singapore, South Africa, Taiwan, Thailand, UAE, Vietnam WEEE/RoHS compliance EN-60601-1-2 (Medical) Wi-Fi Alliance EN50121-1 Railway EMC EN50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration UL 2043 plenum rated 5GHz UNII-1 (2014)
